RS-R Best*i Active Coilover Suspension Kit 2023+ Honda Civic Type R / Integra Type S
RS-R Best*i Active Coilover Suspension Kit 2023+ Honda Civic Type R / Integra Type S
Regular price
$2,999.00 USD
Regular price
Sale price
$2,999.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Part Number: XBIH034MA
Vehicle Applications:
2023+ Civic Type R FL5
2023+ Integra Type S DE5
RS-R is a Japanese automotive parts manufacturer specializing in suspension systems and other related components. The company was founded in Osaka in 1986, and today RS-R has a global presence as a leading suspension manufacturer.

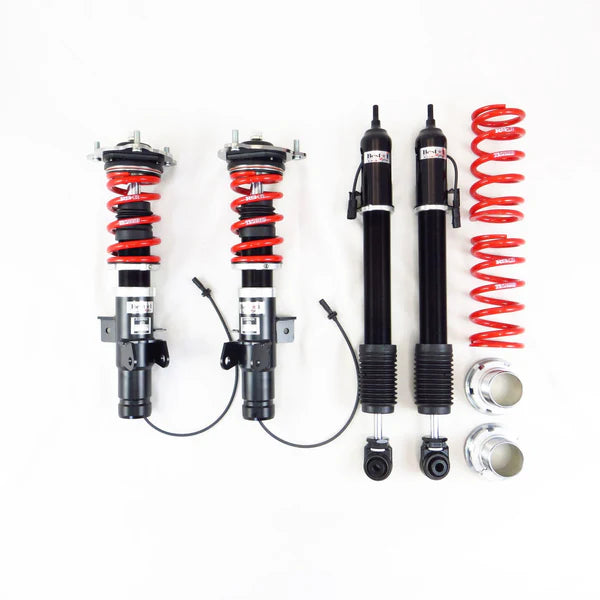

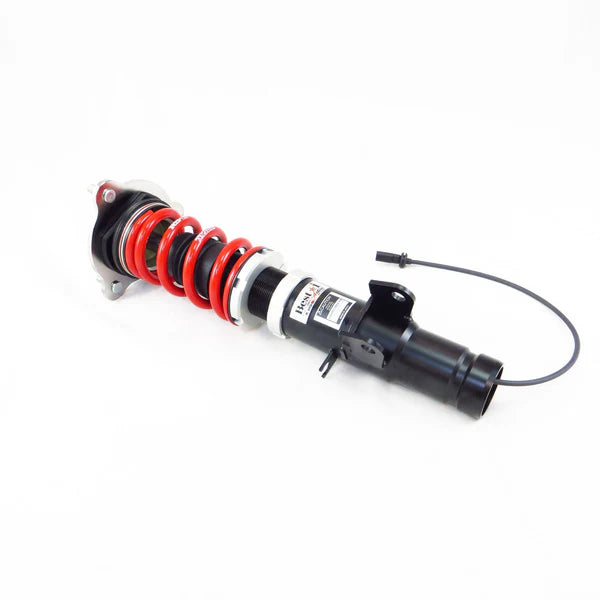

RS-R Best*i Active Coilover Suspension Kit
The RS-R Active Coilover kit for the 2023+ Honda Civic Type R FL5 is specifically designed to work with the Factory Adaptive Damper System without causing any dash error lights. This suspension kit features a 36-way adjustable system for both the front and rear of the vehicle, and is currently used on our 2023+ Type R.
Product Details
- Part Number: XBIH034MA
- Compatibility: 2023+ Honda Civic Type R
- Chassis code: FL5
- Compatible with the Factory Adaptive Damper System
- Factory rear upper mount needs to be re-used
- Dampers are 36 way adjustable in the front and the rear
- Warranty: 1 Year / 12,000 miles from the day of purchase
- Included but not pictured: hex and allen wrench, rubber and poly seat for rear adjuster, flange nut for rear, zip ties, and harness for rear
Preset Approximate Height
- Front: -25mm to -30mm (-1.0in to -1.2in)
- Rear: -30mm to -35mm (-1.2in to -1.4in)
Maximum Adjustment Range
- Front: +5mm to -50mm (-0.2in to -2.0in)
- Rear: -10mm to-55mm (-0.4in to -2.2in)
Recommended Adjustment Range
- Front: -5mm to -45mm (-0.2in to -1.8in)
- Rear: -10mm to -55mm (-0.4in to -2.2in)
Spring Rate
- Front: 8.00kg/mm
- Rear: 6.00kg/mm
