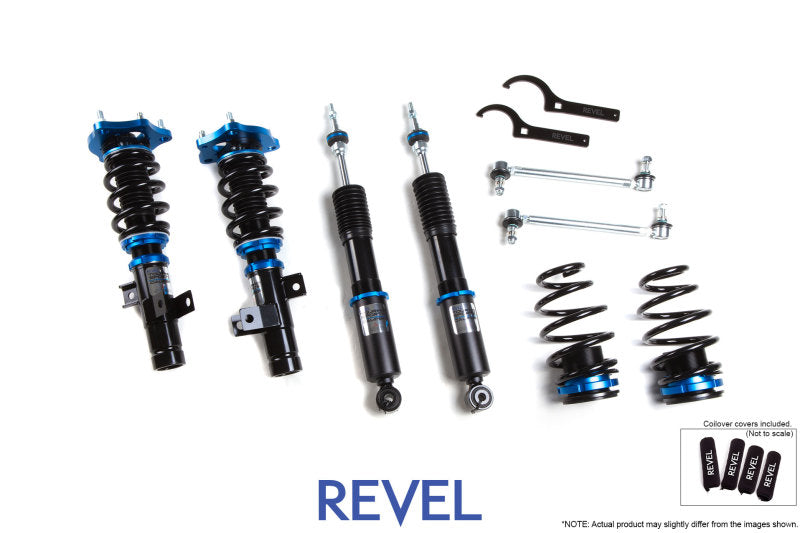

Revel Touring Sports Damper - Honda Civic Type R 17-21

Part Number:  1TR3CDHN006

Special Order

Vehicle Applications:

2017-2021 Civic Type R

Front Spring Rate: 8K
Rear Spring Rate: 5K
Front Upper Mount: Pillowball Upper Mount (w/ Camber Adjustment) Included / Radial Bearing Included
Rear Upper Mount: No Upper Mount Included / Separate Spring and Damper

EVERYDAY PERFORMANCE
The 32 way adjustable Revel Touring Sports Damper is the ideal solution for the most comfortable ride in a coilover kit while achieving an extremely low ride height and utilizing the perfect balance of dampening forces and spring rates to deliver smooth performance when it is needed.

PILLOWBALL UPPER MOUNT
Pillowball upper mounts give the driver greater driving feedback when compared to OEM rubber upper mounts. A spherical bearing is used in place of a rubber bushing and an adjustable camber plate is utilized on certain applications which aid in achieving improved tire traction and alignment.

RADIAL BEARINGS
Radial bearings are included on kits with MacPherson type struts*. These radial bearings isolate spring movement from the coilover assembly, thus eliminating more noise that is typically associated with aftermarket coilover systems.
*Some applications are excluded.

COILOVER COVERS
Coilover covers are included on all Revel Touring Sports Damper coilover kits to offer an added layer of protection against harsh road and weather conditions. Made out of Neoprene material, the coilover covers protect the springs, shock shaft, and seals, from dirt and other debris. The zipper allows the cover to be installed securely and without the need to remove the coilover assembly.

PERFECT BALANCE
Spring rates are perfectly balanced between comfort and sport like feel for optimum ride quality. Full length thread body with independant preload allows for max lowering.

MONOTUBE DAMPER
Larger piston valves and oil capacity allows for a faster reacting dampening force and efficiency through all temperature ranges. High strength and rigidity brackets ensure the driver has the utmost confidence for all driving types.
