PRL Motorsports Carbon Fiber Inlet Pipe Kit 2022+ Honda Civic 1.5T / 2023+ Acura Integra A-Spec

Part Number: PRL.1097.1.CARM

Vehicle Applications:

Fits all 2022+ Honda Civic 1.5T
Fits all variant models including Si, CVT, 6MT, RHD, International Models, Etc.

Important Notes:

• NO ECU CALIBRATION REQUIRED
• FITS PRL HIGH VOLUME INTAKE SYSTEM

Overview:
Reach the potential of your L15CA-powered 11th Gen Honda Civic or Acura Integra with PRL Motorsports’ Carbon Fiber Turbocharger Inlet Pipe Kit. Designed to eliminate airflow restriction before the turbo, this high-performance upgrade promotes faster spool, improved throttle response, and more efficient turbo operation, without requiring a tune.

Constructed with a thin-wall carbon fiber crossover pipe and a precision-machined cast aluminum inlet transition, this kit increases airflow volume over stock while maintaining high air velocity. The multi-piece design improves fitment and installation ease, and the system is fully compatible with both OEM turbos and drop-in upgrades.

PRL designed this system with the 1.5L L15CA turbo engine in mind, ensuring a balance of airflow volume and velocity for both stock and upgraded turbochargers. The result is a bolt-on system that improves efficiency and responsiveness, all while being emissions-friendly and visually stunning under the hood.

Key Features:
Maximizes airflow volume to reduce restriction at the turbo inlet

Thin-wall carbon fiber construction helps reduce heat soak

Cast aluminum inlet piece ensures a smooth transition from turbo to intake pipe

Maintains 76.2mm OD / 74mm ID internal diameter throughout

Multi-piece layout allows easier install vs. one-piece designs

NO ECU tuning or calibration required

Compatible only with PRL High Volume Intake or Short Ram Intake.

Construction and Materials:
Cast 6061 Aluminum Inlet Piece

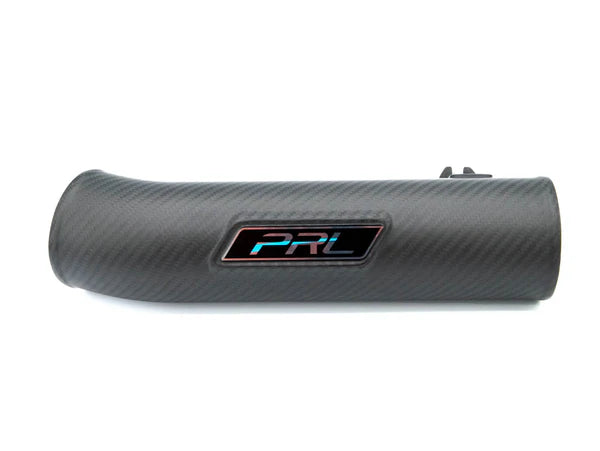

76mm OD Carbon Fiber Tubing

High-Temp 4-Ply Silicone Couplers

304 Stainless Steel Interlocking Worm Clamps

Injection Molded EVAP Fitting

Buna O-Rings

Vacuum Hoses and Required Hardware

Fitment:
2022+ Honda Civic 1.5T (All variants including Si, CVT, 6MT, RHD, and International models)

2023+ Acura Integra 1.5T

Fits all OEM and drop-in replacement turbochargers

ONLY compatible with PRL High Volume Intake or PRL Short Ram Intake

DOES NOT fit with the OEM airbox

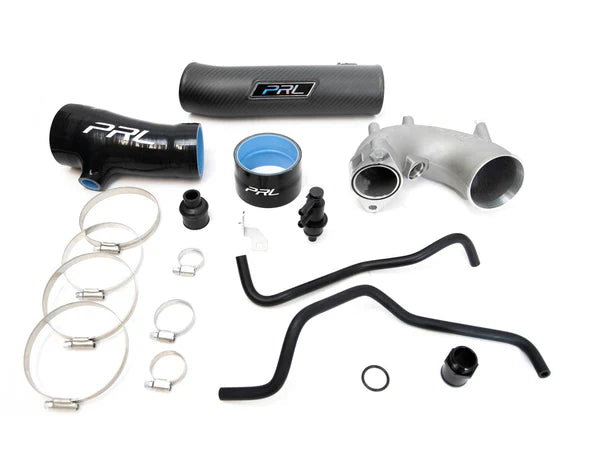

What’s Included:
(1) Cast Aluminum Inlet Piece

(1) 76mm OD Carbon Fiber Inlet Pipe

(2) High-Temp 4-Ply Silicone Couplers

304 Stainless Steel Worm Clamps

Vacuum Hoses

(1) Injection Molded Fitting

Buna O-Rings

Installation Hardware
