PRL Motorsports

PRL FRONT CHASSIS BRACE 2016-2021 Honda Civic

PRL FRONT CHASSIS BRACE 2016-2021 Honda Civic

Regular price $179.99 USD
Regular price Sale price $179.99 USD
Sale Sold out
Shipping calculated at checkout.

Part Number:

PRL-HC10-CB-F



Vehicle Applications: 2017-2021 Civic Type R





Fits all 2017-2021 Honda Civic Type-R FK8
Fits 2016-2021 Honda Civic 10th Gen (1.5T & 2.0L)





We want to introduce you to the latest addition to our chassis reinforcement lineup-the PRL 16-21 Honda Civic Front Chassis Brace Upgrade. Designed to complete the full bracing system, this upgrade adds crucial front-end rigidity, improving chassis stability under aggressive driving conditions.

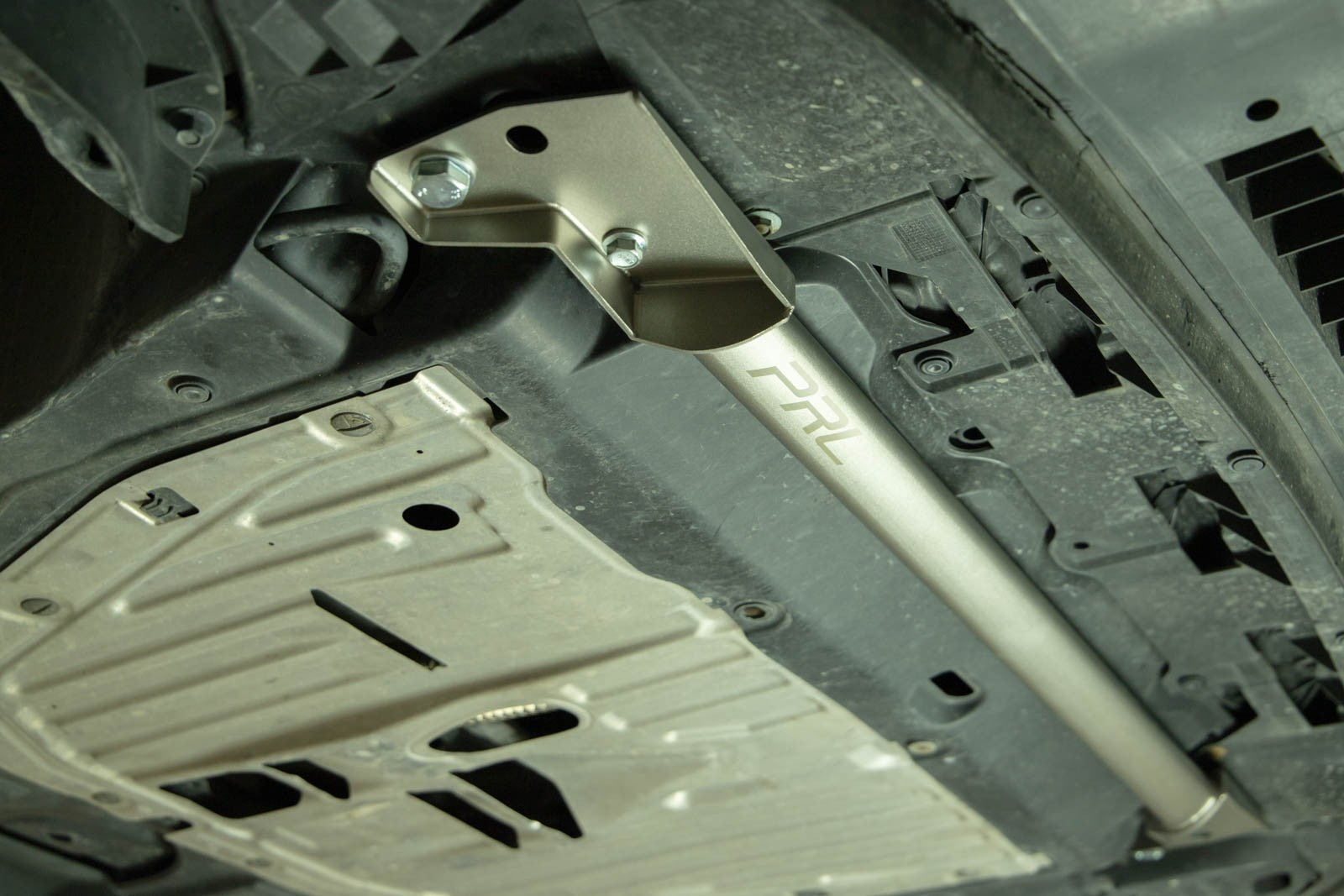

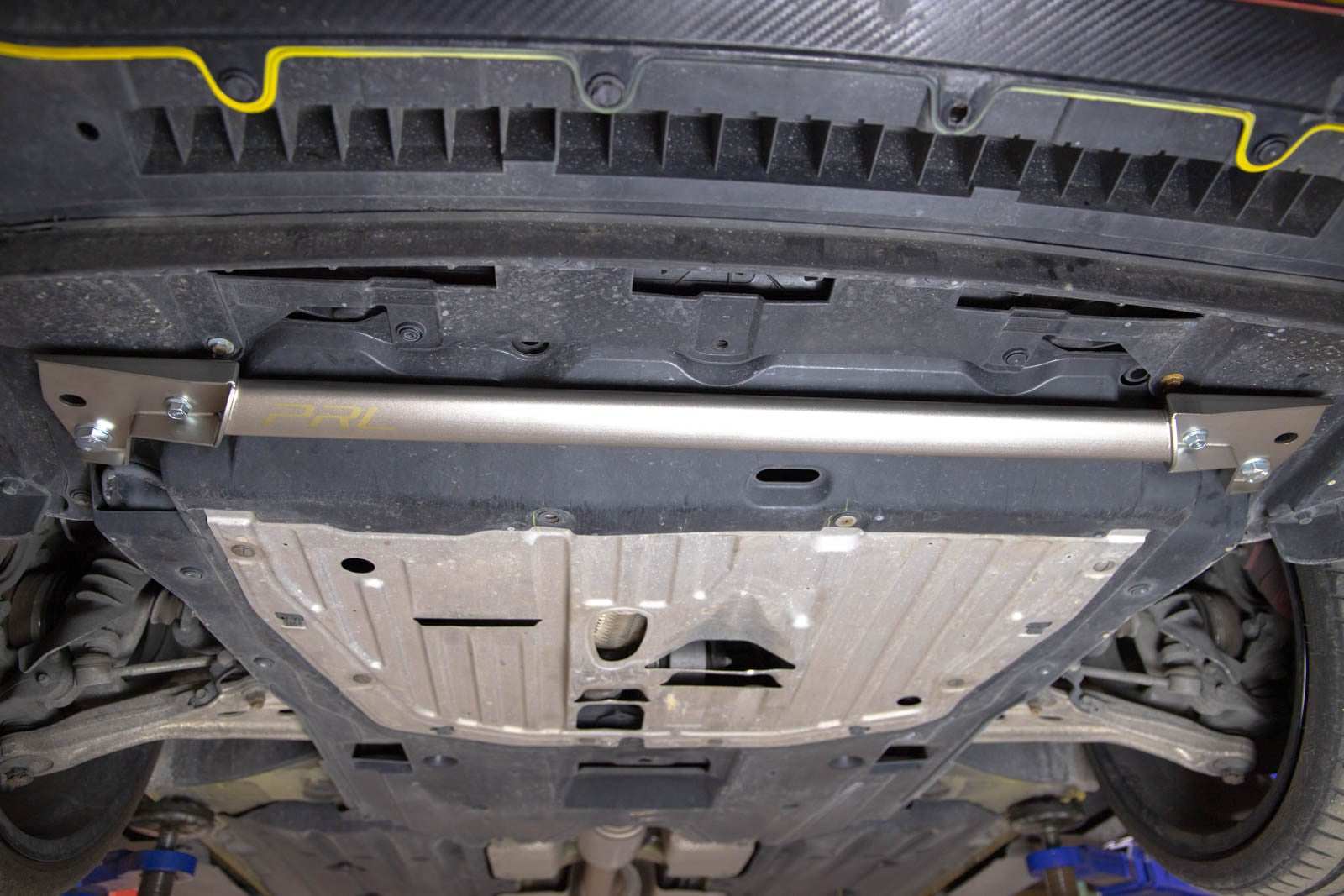

Developed by our in-house engineers, this brace bolts up to three existing holes on each side of the subframe, distributing load more effectively to reduce flex and maintain suspension geometry. Unlike some aftermarket solutions, our brace mounts outside of the factory plastic under shield, allowing full retention of the stock sheet metal brace while enhancing front-end support.


Manufactured from 304 stainless steel and TIG welded for durability, this brace provides a lightweight yet robust solution to reinforce the Civic's front chassis, particularly beneficial during hard cornering. It also offers an aggressive look to the underside of the car, making it an attractive upgrade for both track enthusiasts and street drivers alike.

With this new release, PRL now offers a complete chassis reinforcement solution for the 2016-2021 Civic platform, providing a front, mid-rear, and rear chassis brace to maximize stability and handling.



Technical Specifications:

  • Dimensions: 40 x 5 x 2 inches
  • Weight: Approximately 5 lbs
  • 304 Stainless Steel Construction
  • 1.9 mm Thick Elliptical Tubing
  • 11 Gauge Sheet Metal
  • Machined Stainless Steel Bushings
  • JIS Class 10.9 Zinc Plated Hardware

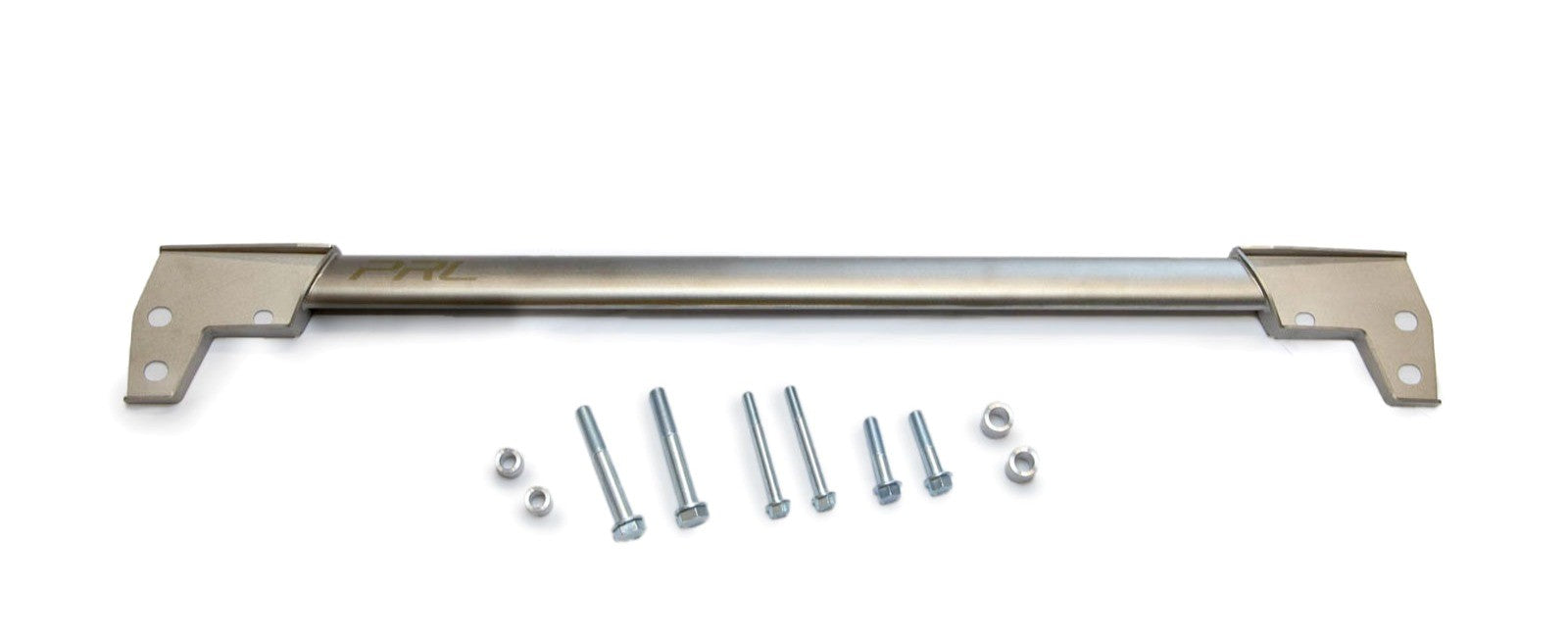

What's Included:

  • 1x Front Bar Welded Assembly
  • 2x Bushing #1
  • 2x Bushing #2
  • 2x Bushing #3
  • 2x M10 x 1.25 x 85 JIS Flange Bolts
  • 2x M12 x 1.25 x 55 JIS Flange Bolts
  • 2x M14 x 1.5 x 100 JIS Flange Bolts
  • 1x Custom Box with Top and Bottom Foam Inserts
  • 1x PRL Packed-by Card
  • 2x PRL Stickers
