PRL 1.5T Intercooler Upgrade 2016-2021 HONDA CIVIC NON TYPE R
PRL 1.5T Intercooler Upgrade 2016-2021 HONDA CIVIC NON TYPE R
Regular price
$659.00 USD
Regular price
$699.00 USD
Sale price
$659.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Part Number PRL-HC10-IC
Application:
Fits all 2016-2021 Honda Civic 1.5T
Fits all variant models including Si, CVT, 6MT, RHD, International Models, Etc.
50 State Legal CARB Approved: EO D-878
Important Notes:
NO ECU CALIBRATION REQUIRED
THERE ARE (2) TOTAL O-RINGS IN THE FACTORY CHARGE PIPE SYSTEM. O-RINGS MAY BE SUBJECT TO REPLACEMENT IF TORN, DRY-ROTTED, DISFORMED OR HIGH MILEAGE
REMOVAL OF LOWER FACTORY INTAKE AIR BOX DAMPER IS RECOMMENDED FOR OPTIMAL FITMENT
FITS FACTORY CHARGE PIPING OR PAIR WITH OUR CHARGE PIPE UPGRADE KIT FOR OPTIMAL PERFORMANCE
PLEASE CALL OR EMAIL IF PAIRING WTH V1 CHARGE PIPING
OEM Honda Part Number 19710-5AA-A01
Technical Notes:

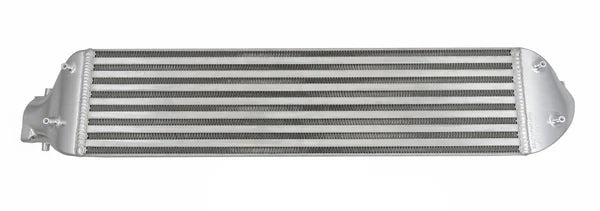

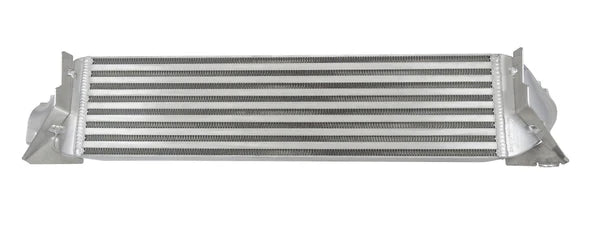

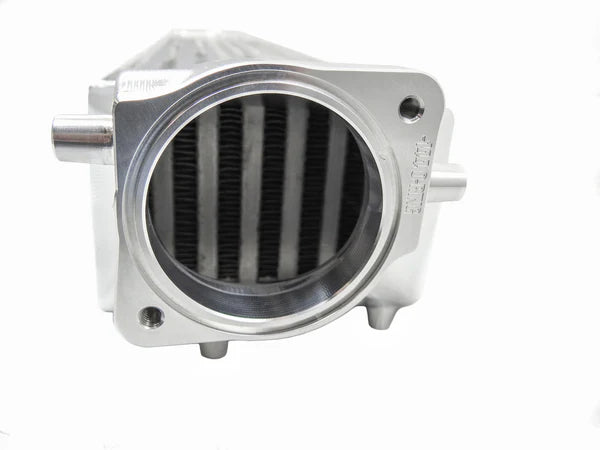

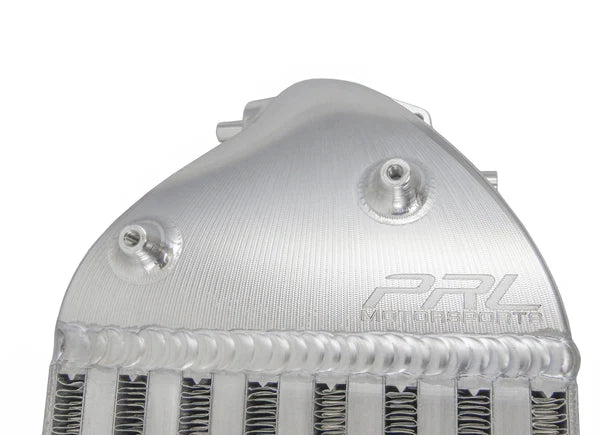

It’s no secret that Honda’s 1.5L turbo Civic is extremely susceptible to heat-soak, especially when retaining the factory intercooler. Excessive heat-soak increases the risk of detonation and causes major power-loss due to high charge air and cylinder temperatures. These issues become even more prevalent with spirited driving and/or increased power outputs. The PRL Motorsports intercooler upgrade decreases charge air temperatures while increasing potential airflow with its dense 550+ horsepower rated (though we have pushed 600+) 25.5x4x6.3” bar-and-plate bar-and-plate core and machined billet aluminum end tanks! This intercooler utilizes factory mounting spots with our embossed end tanks. Kits will come with all hardware needed for a seamless install.
Performance Gains:
- 9 horsepower & 3 ft/lb torque gains by simply bolting on
- 50+ F degree drop in post charge air temperature at peak
- Average of 36 F degree drop in post charge air temperature
- Increased efficiency & consistency in power delivery
- Increased engine safety
Kit Includes:
