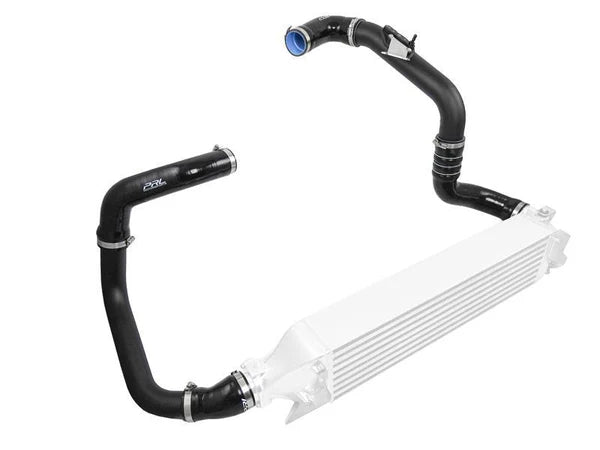

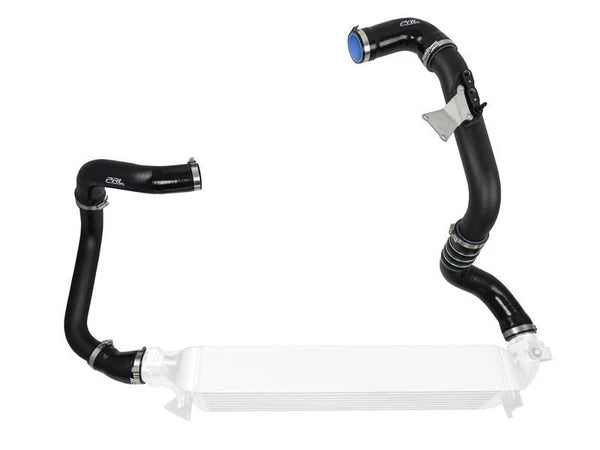

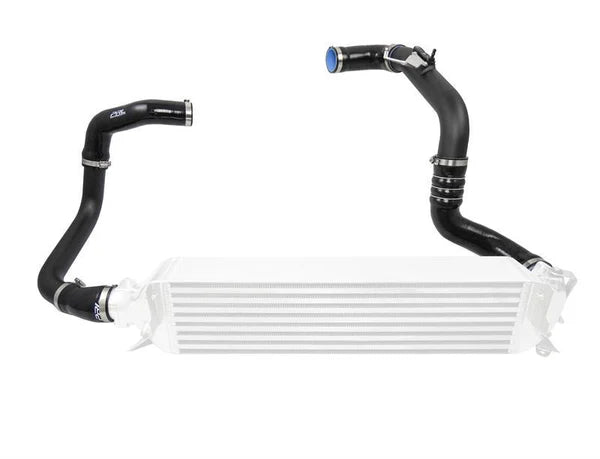

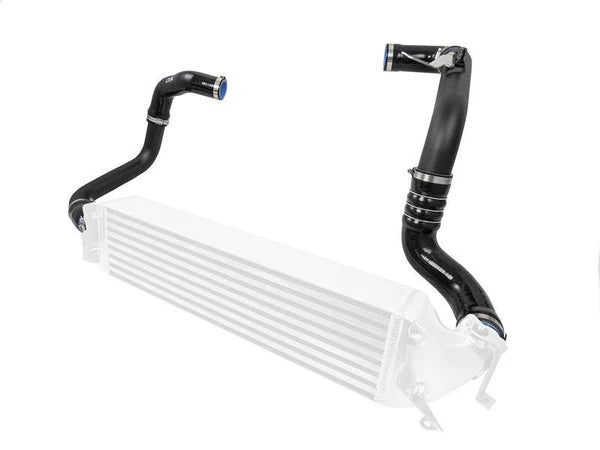

PRL 1.5T Intercooler Charge Pipe Upgrade Kit 2016-2021 HONDA CIVIC NON TYPE R
PRL 1.5T Intercooler Charge Pipe Upgrade Kit 2016-2021 HONDA CIVIC NON TYPE R
Couldn't load pickup availability
Part Number PRL-HC10-CP
Application:
Fits all 2016-2021 Honda Civic 1.5T
Fits all variant models including Si, CVT 6MT, RHD, International Models,
Etc.ONLY FITS PRL MOTORSPORTS INTERCOOLER UPGRADE. V1 (CAST END TANK) INTERCOOLER DOES NOT REQUIRE ADAPTER
PLEASE EMAIL SUPPORT@PRLMOTORSPORTS IF PAIRING WITH OUR ORIGINAL V1 INTERCOOLER
Technical Notes:
- Heat-soak reduction: Silicone hose offers extremely low thermal heat transfer properties, especially in comparison to steel or aluminum.
- Strength and rigidity: The rubber hoses used from the factory are known to experience expansion, which worsens as boost is increased. In time, the rubber construct weakens, causing increased likeliness of a boost leak. Our high-temp, 4-ply silicone with handle the high temperatures of the turbocharger much better than the factory rubber hose(s).
- Smooth airflow: Custom molded silicone allows us to offer much higher flowing bends than we could with metal tubing.
- Optimal fitment: We have found that the factory rubbers hoses don't offer the most desirable fitment, especially when paired with an aftermarket radiator. Our silicone hose(s) offer even better fitment than factory.
Kits will come with all hardware needed for a seamless install.
Performance Gains:
- Increased efficiency & consistency in power delivery
- Increased flow over stock charge pipe application
Kit Includes:
- (1) Hot Side Charge Pipe
- (1) Cold Side Charge Pipe w/ Auxiliary Service Port & Machined Billet Aluminum Flange
- (1) -4AN O-Ring to 1/4" Hose Barb (Pre-Installed in Cold Side Charge Pipe) to retain factory vacuum connection
- (1) 1/8” NPT Pipe Plug (Pre-Installed in Auxiliary Service Port Bung)
- (1) Mounting Bracket for Cold Side Charge Pipe
- (4) 4-Ply Silicone Coupler
- (8) 304 Stainless Steel Worm Clamp
- (2) Charge Pipe Adapters
You asked for it and we listened. Introducing the R365 RED ball bearing turbocharger for the 2016-2021 Civic equipped with a 1.5T engine. We took what we learned from the successful R365 turbo and improved upon it. The R365 BB RED features a dual ceramic ball bearing for faster spool. As well as performance oriented high flow compressor and turbine wheels. These improvements allow the R365BB RED to spool 400RPM faster than the R365 and also improves top end power.
This turbo will require thicker 0W-30 or 5W-30. The reasoning is that running increased boost pressures on a small frame turbocharger puts significant load on the ball bearings. The thicker oil will offer better protection for the engine and turbocharger at higher power levels.
**Professional installation recommended**
**Custom Tune required**
Compressor
Inducer - 50.38mm
Exducer - 68mm
Blades - 5+5
Turbine
Inducer 47mm
Exducer 41.4mm
Blades - 9
A/R 0.5
Features
•Direct drop in design
•Quick spooling dual ceramic ball bearings
•Light weight billet compressor wheel
•Inconel Alloy Turbine wheel
•Optimized FEA analysis design
•One year hassle free warranty
DISCLAIMER - COMPETITION USE ONLY
ITEMS ARE SOLD FOR RACING COMPETITION ONLY AND NOT LEGAL FOR USE ON HIGHWAY OR STREET VEHICLES, OR OTHER NON-RACING COMPETITION OFF-ROAD VEHICLES.
