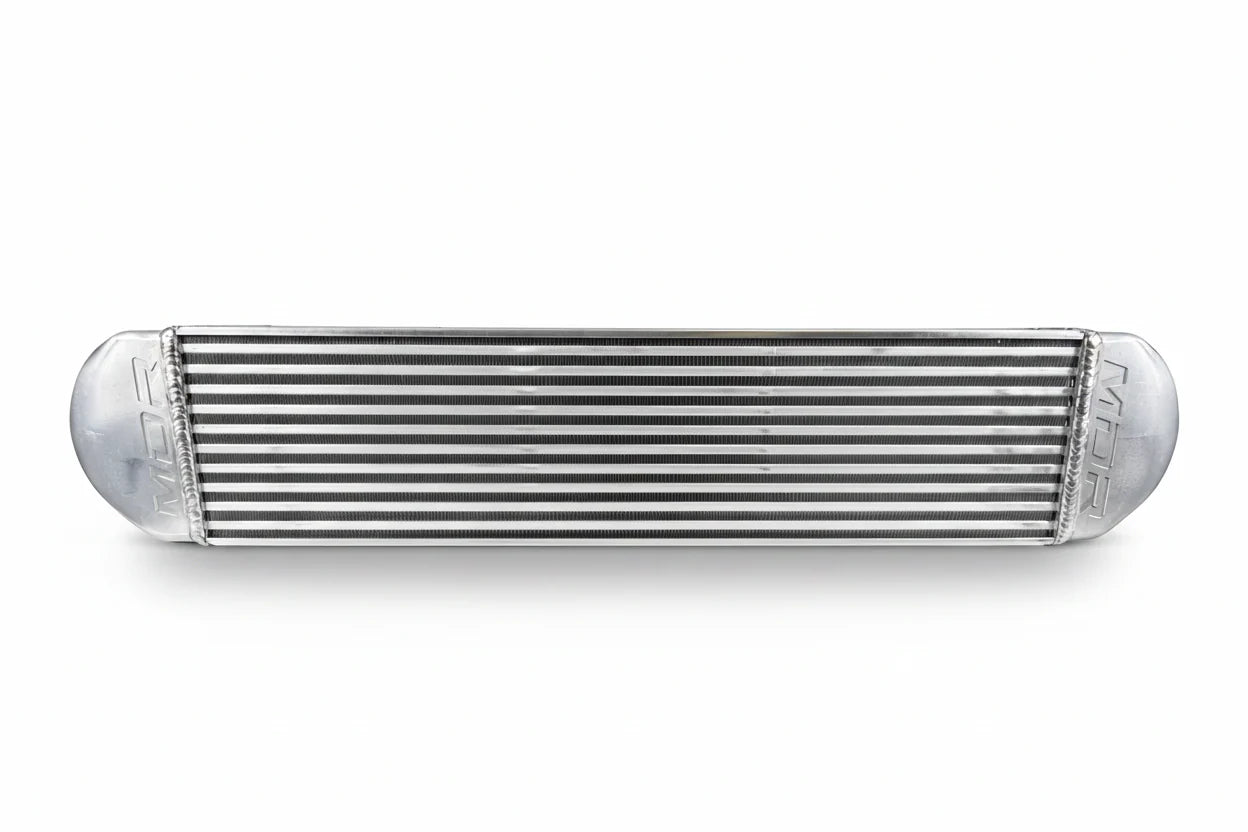

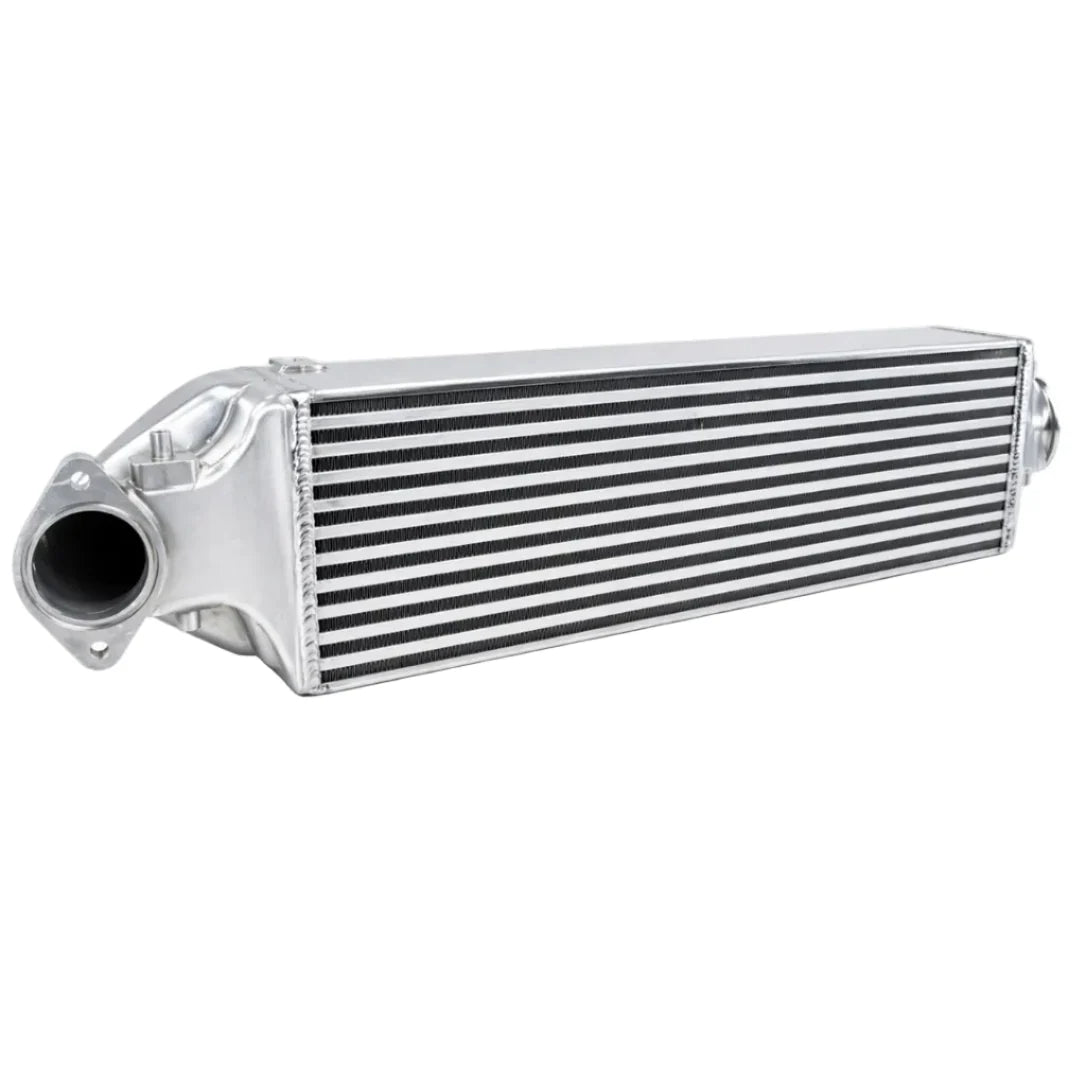

MDR Industries Billet Tube & Fin Front Mount Intercooler 2023+ Honda Civic Type R FL5 / 2024+ Acura Integra Type S (Copy)
MDR Industries Billet Tube & Fin Front Mount Intercooler 2023+ Honda Civic Type R FL5 / 2024+ Acura Integra Type S (Copy)
Regular price
$1,099.00 USD
Regular price
$1,199.00 USD
Sale price
$1,099.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Part Number: 925-1992-1
Currently lead time of 3 months.
Vehicle Applications:
2023+ Civic Type R FL5
2023+ Integra 2.0T DE5
FEATURES
- Tube and fin core
- Billet 6061-T6 aluminum machined end tanks
- No ECU calibrations required
- Utilizes all factory intercooler mounting locations / brackets
- Core size maximizes the opening on the front bumper
- Notable increase in air density
- 100% pressure tested
- TIG welded
- Assembled in Simi Valley, CA
-
Core size – 5.50” thick x 7.02” stack up height x 28.0” wide
- Surface area – 196.56 in2 / 25.17% increase
- Volume – 1,081.08 in3 / 175.38% increase
- Average pressure drop – 1.17 psi
- Average temperature drop – 174.81 deg. F
- Max Inlet Temp. - 337.2 deg. F
- Outlet Temp. - 90.3 deg. F (246.9 deg. F of Drop)
- Pressure Drop - 1.12 psi
