GReddy 2017-2019 Honda Civic Type-R NS1010G 10 Row Oil Cooler Kit

Part Number: gre12058002

Ships in 1-10 business days if in stock.

Vehicle Applications: 2017-2021 Civic Type R

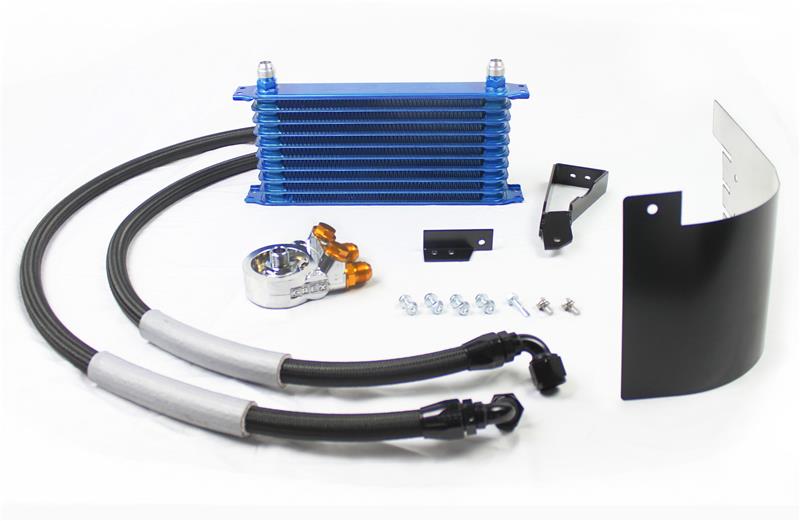

The Greddy Performance Products Civic Type R Oil Cooler Kit addresses the documented cooling demands of the high performance K20C1 engine. By mounting an efficient Greddy inner-fin oil cooler core, in an unused area of the front left bumper, it does not harm air-flow to the intercooler or radiator. For constant oil temperatures, the other key component in the kit, is the “tried and true” GREX oil block adapter with integrated thermostat for quick engine oil warm ups. The oil block and 10row oil cooler is connected by high flow -10 AN fittings and lightweight XRP performance lines. The complete kit also includes bolt-on brackets, necessary hardware and a circuit-spec air-duct, to maximize the cooling effects.

• Direct-fit for the 2015+ Ford Mustang GT

• Reduces oil temperatures

• Innovative bar and plate oil cooler mounts in the upper grille, allowing more room for supercharger heat exchangers

• Mounting bracket also serves as an air diversion panel, directing the maximum amount of ambient air through the oil cooler

• Pre-made stainless steel braided oil lines with durable -AN fittings

• Comes with replacement lower radiator hose to bypass the stock fluid-based oil cooler

• Removes the stock fluid-based oil cooler for less stress on the engine's cooling system

• Billet aluminum thermostatic oil sandwich plate

• Increases oil capacity by 1qt

Technical Specifications:

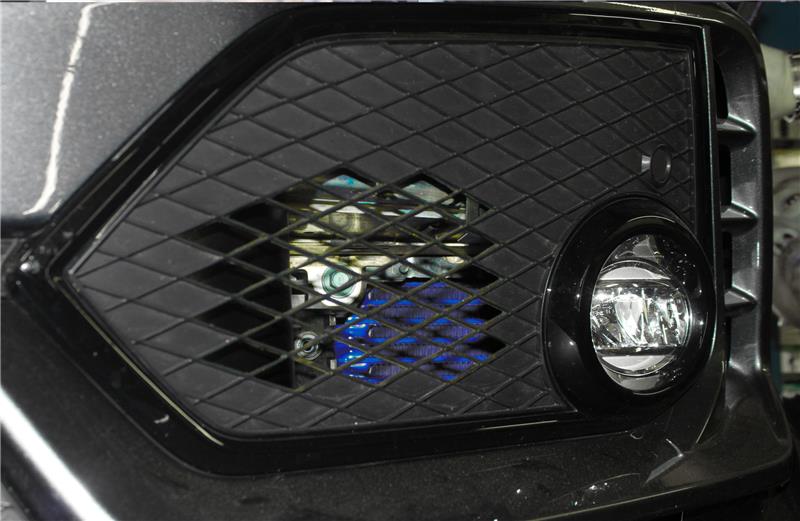

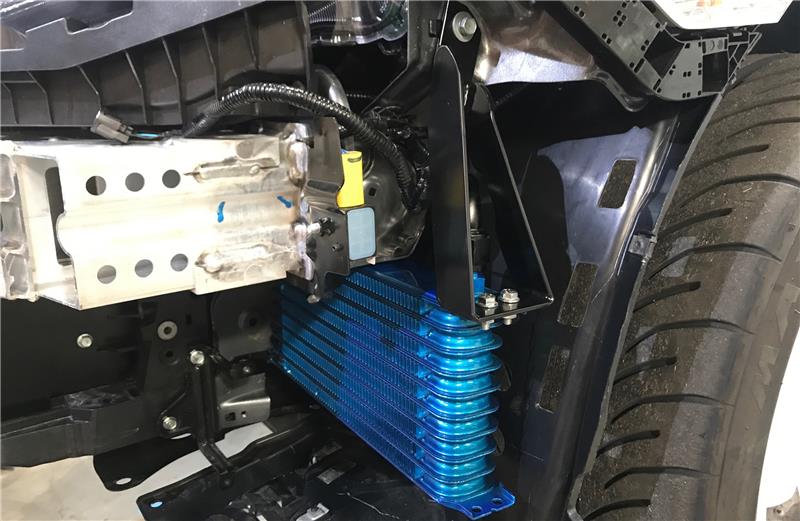

NS1010G - 10row GReddy Oil Cooler with -10 XRP lines. Mounts behind left side of the front bumper M20xP1.5 GREX Oil Block Adapter with built in thermostat and ducting plate, brackets, hardware.
