CSF Radiator

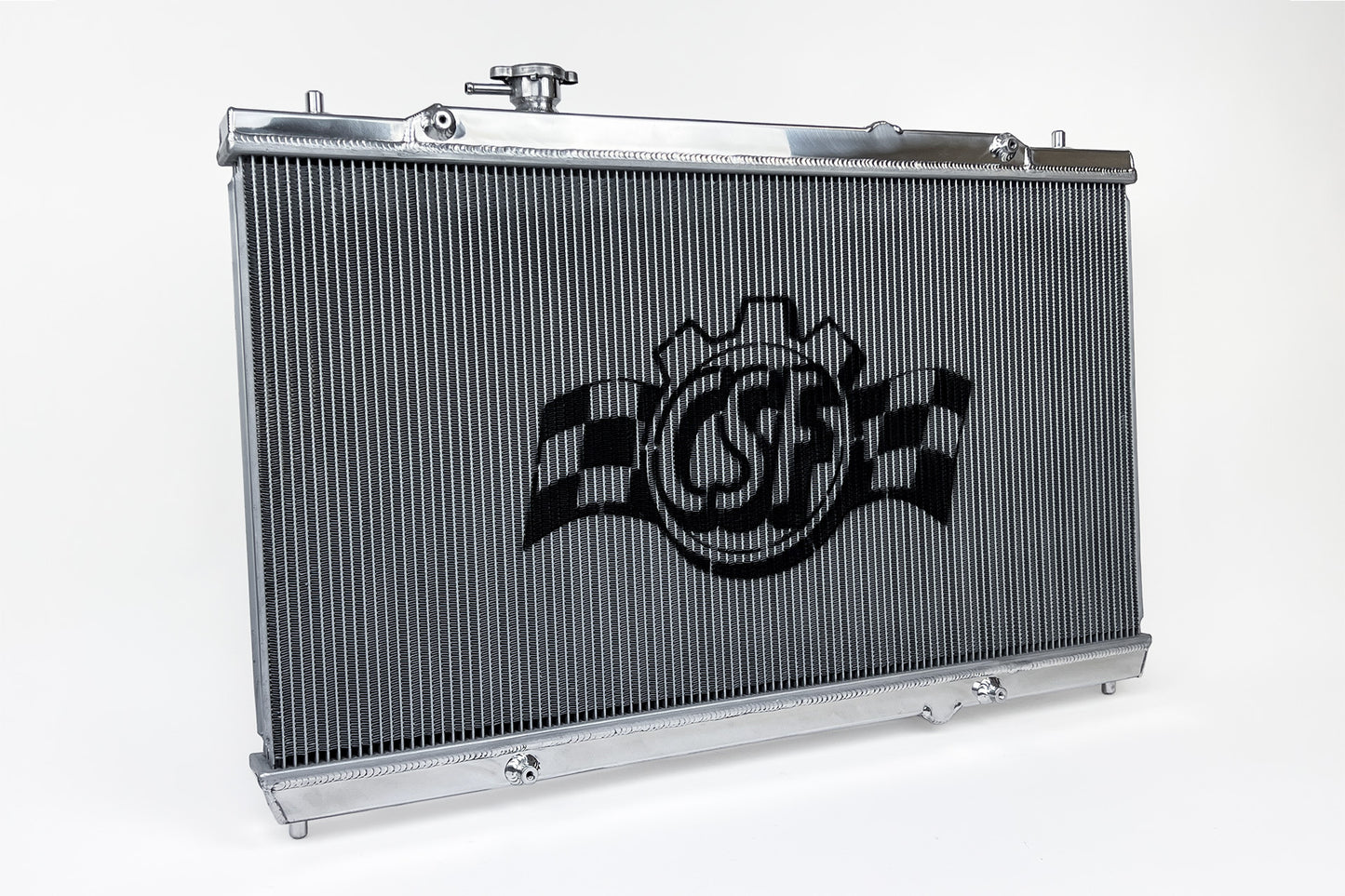

CSF High Performance All Aluminum Radiator 2022+ HONDA CIVIC SI / 2022+ ACURA INTEGRA 1.5T RADIATOR
CSF High Performance All Aluminum Radiator 2022+ HONDA CIVIC SI / 2022+ ACURA INTEGRA 1.5T RADIATOR
Regular price
$649.00 USD
Regular price
$699.00 USD
Sale price
$649.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Part Number: csf7222
Ships in 1-10 business days if in stock.
Vehicle Applications:
2022+ Honda Civic Si 1.5T
2022+ Acuran Integra 1.5T
2022+ Honda Civic 1.5T
Like the racing radiator on the FL5, this new High-Performance version features CSF's latest 5mm fin cooling technology. The new fin design increases the heat transfer area of the radiator by 20-25% over other larger fin designs.
Features and Benefits
- 2-Row, 42mm Ultra-High-Performance Core
- Cooling Tubes with CSF's Exclusive B-Tube Technology
- New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
- 100% All Aluminum TIG-Welded Construction

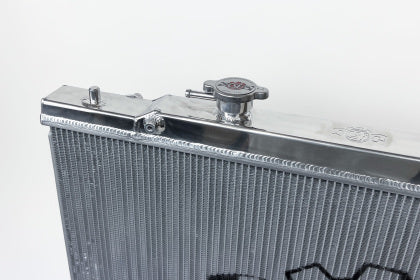

- 1.4 Bar High Pressure Radiator Cap with CSF logo
- 1-Hour "Mirror Finish" Hand Polish
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
Finish/Color:
Polished
Coolant Hose Inlet Connection Type:
OE Type Connection
Coolant Hose Outlet Connection Type:
OE Type Connection
Core Height:
15.75 in.
Core Row Quantity:
2
Core Thickness:
42mm
Core Width:
29.6875 in.
Down Flow Or Cross Flow Type:
Down Flow
Grade Type:
Performance
Inlet Connector Type:
Slip On
Inlet Diameter:
1.625 in.
Inlet Location:
Top Left
Internal Engine Oil Cooler:
No
Internal Transmission Oil Cooler:
No
Mounting Hardware Included:
No
Mounting Type:
Mounts with OE Hardware
Outlet Connector Type:
Slip On
Outlet Diameter:
1.625 in.
Outlet Location:
Bottom Left
Prop 65 Yes/No:
No
Radiator Cap Included:
Yes
Tank Material:
Aluminum
Thermostat Included:
No
Recommended Supporting Mods Spoon Thermostat
Professional installation required as installation is not always direct bolt on.
