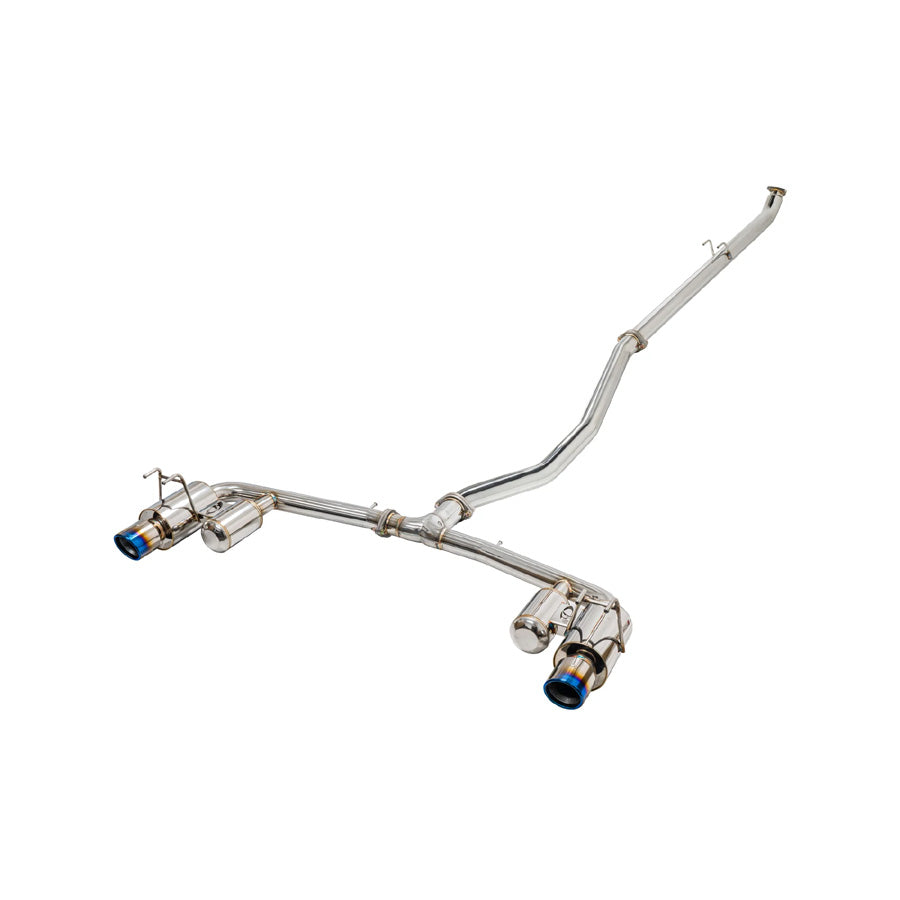

A'PEX-i N1-X Evolution Extreme Exhaust -2022+ Honda Civic Hatchback

Part Number: APEXI-164KH004

Vehicle Applications:

2022+ Honda Civic Hatchback

EX-L trim requires Touring Rear Diffuser

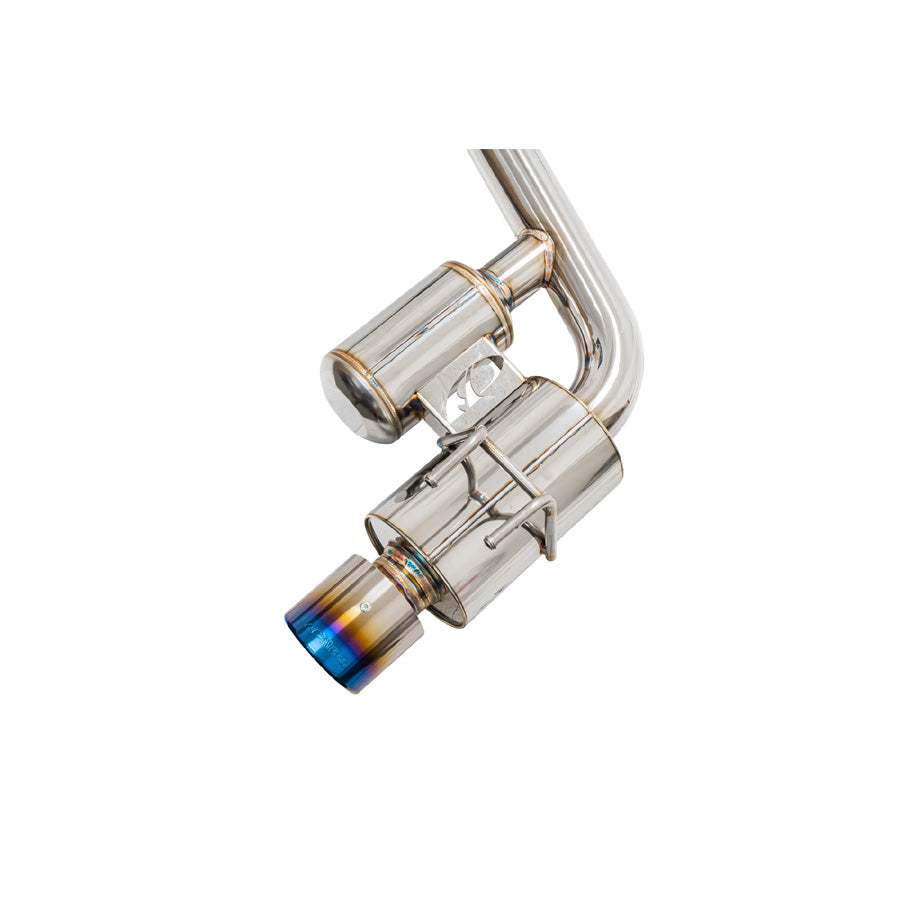

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum, exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradation appearance.

FEATURES:
- N1 EvX titanium tips specially designed with clearance to reduce heat transfer
- Top Level quality using full tig-welded SUS304 stainless steel
- Matched and manufactured for select chassis
- A'PEXi intricate designed brackets
- Resonated midpipe structure
- Comfort with optimal performance gains

Specifications:
- Part Number: 164KH004
- Make: Honda
- Model: Civic Hatchback Sport Touring
- Engine: L15BA (Turbo)
- Chassis: FL1 - 4 Door Hatchback
- Exhaust Type: N1 Evolution Extreme Muffler (N1-X)
- Piping Diameter: 3inch to 2.5inch
- Tip Diameter: 105mm. x 2
- Pieces: 3
- Exhaust Tip Style: Titanium Round- Dual wall rolled, Angle cut (Riveted)
- Piping Material: SUS304 Stainless Steel
- Muffler Material: SUS304 Stainless Steel
- Muffler Tip Material: Titanium
